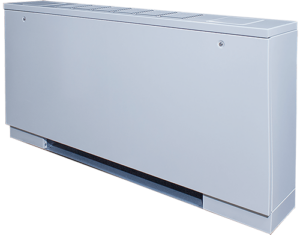

Vertical Cabinet Heater
Nominal CFM range from 200 to 1200 CFM. Designed for perimeter heating in high-traffic areas such as classrooms, foyers, hallways, and more. Standard units are 18 gauge galvanized finish steel with the option for a 16ga decorative wall panel.
Nominal CFM range from 200 to 1200 CFM. Designed for perimeter heating in high-traffic areas such as classrooms, foyers, hallways, and more. Standard units are 18 gauge galvanized finish steel with the option for a 16ga decorative wall panel.
Vertical Cabinet Heater Models
GHY - The Vertical Hideaway (GHY) v-Heat cabinet heater is designed for concealed applications. The slender design of the GHY makes this unit ideal for perimeter heating and applications in public buildings, offices, hospitals and hotels. Standard GHY units are 18 gauge galvanized finish steel with the option for a 16ga decorative wall panel.
GXY - The Vertical (GXY) v-Heat Cabinet Heater is designed for applications in public buildings, offices, schools and hospitals. The GXY cabinet is fabricated of heavy 18 gauge steel. The top panel provides structural rigidity essential for an exposed unit. GXY units have a removable, one-piece 16ga front panel for easy access to all internal components. Standard GXY units are provided with a durable powder-coated paint finish.
GSY - The Vertical Sloped (GSY) v-Heat Cabinet Heater is designed for applications in public buildings, offices, schools and hospitals where it is necessary to prevent books and other items from being placed over the discharge grilles on the top panel. The GSY cabinet is fabricated of heavy 18 gauge steel. The 25-degree, sloped, top panel provides structural rigidity essential for an exposed unit. GSY units have a removable, one-piece 16ga front panel for easy access to all internal components. Standard GSY units are provided with a durable powder-coated paint finish.
Features
- 200 to 1200 CFM
- 1/2" hydronic heat coil option
- Electric Heat only option
- Durable 18ga cabinet with 16ga front panel
- ECM motor option with an efficiency range of 65 – 85% compared to the efficiency range of 30 – 40% on a standard PSC motor
- Highly customizable cabinetry allows for flexible footprints making this unit a great fit for new construction or renovation
- Optional wall-mount application and trim kit
Shipping Details
Lead time - 8-10 weeks
| Tube Material | Size | Thickness |
|---|---|---|
| Aluminum | 5/8" | .049" .065" |
| Brass | 5/8" | .049" .065" |
| Carbon Steel | 5/8" | .049" .065" |
| Copper |
11/2" 25/8" 35/8" (non-freeze) 47/8" 51" (non-freeze) |
1.017" .025" 2.020" .025" .035" .049" .065" 3.017" .025" 4.017" .025" 5.017" .025" |
| Cupro Nickel |
15/8" 27/8" |
1.035" .049" .065" 2.035" .049" .065" |
| Stainless Steel |
15/8" 27/8" |
1.035" .049" .065" 2.049" .065" .109" |
| Fin Material | Thickness |
|---|---|
| Aluminum | .006" .008" .010" .016" .030" |
| Carbon Steel | .012" |
| Copper | .006" .008" .010" |
| Cupro Nickel (90/10) | .010" |
| Stainless Steel (304/316) | .010" |
| Casing Material | Thickness |
|---|---|
| Aluminum | 8 GA. |
| Galvanized Steel | 16 GA. 14 GA. |
| Stainless Steel | 12 GA. 10GA. |
| Connection Material | Connection Type |
|---|---|
| Aluminum | |
| Brass | Flanged |
| Copper | M.P.T. |
| Cupro Nickel | Sweat |
| Steel | F.P.T. |
| Name | Format | Size |
|---|---|---|
 Cabinet Unit Heater Performance.pdf | 0 bytes | |
| GHY Vertical Hideaway Cabinet Heater Drawing.pdf | 0 bytes | |
| GSY Vertical Sloped Top Cabinet Heater Hydronic Heat Drawing.pdf | 0 bytes | |
| GXY Vertical Cabinet Heater Drawing.pdf | 0 bytes |
